Weatherproof OSDP reader for MIFARE® 13.56 MHz cards

---

The MM-R78 is a weatherproof RFID reader for MIFARE® 13.56 MHz cards. The reader can work with any controller that uses the OSDP protocol (EN 60389-11-5).

The reader was designed to operate within the MicroMade Secure Identification System (MmSID). This allows for the creation of an access control system with the highest possible security grade, level 4. Depending on the configuration, the reader can read and transmit the following to the controller:

• Encrypted data from MmSID installation cards (MIFARE® DESFire® type cards)
• The unique identifier (UID) of MIFARE® proximity cards (in accordance with the ISO/IEC 14443A standard)
• An identifier from the MmId app on an Android smartphone

Reader configuration

MM-R7x series readers can be configured even after installation and connection to the OSDP bus. This is done using a special interface called MmSID Manager, which can search for all readers connected to the controller’s OSDP bus. It can then set the desired transmission speed, assign individual OSDP addresses required by the controller, and transmit the cryptographic keys needed to read cards for a given installation.

The MmSID Manager is operated using the MmSID Config software.

Installation

The MM-R78 reader is weatherproof and can be installed both indoors and outdoors. It features a durable, aesthetically pleasing housing made of ABS plastic. All electronic components are sealed with wepuran resin. This technology allows for the reader to be mounted directly on a metal surface without a loss in card reading range.

The reader is equipped with modern anti-tamper sensors: an accelerometer and an inductive sensor. The reader housing is designed for direct surface mounting on a wall.

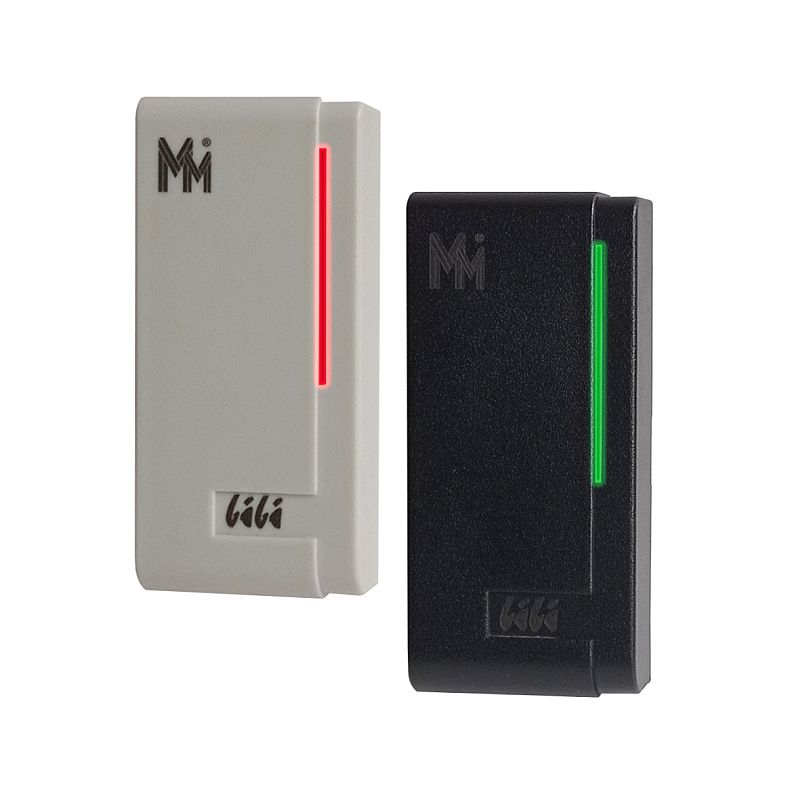

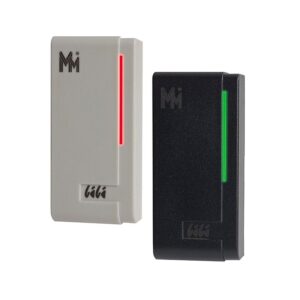

The reader is available in two colors: black and light (cream). It comes standard with a 0.5m connecting cable, but readers with a longer cable (up to a maximum of 5m) can be ordered.
